Megger Baker Promotion

Megger Baker Promotion

*Promotion valid in Canada only.*

Properly diagnose, troubleshoot, and maintain your equipment and save money while doing it.

For a limited time, save 10% on this industry-leading suite of products built to detect weaknesses and faults in the insulation systems of electric motors.



Cliquez ici pour le Français


PPX   AWX

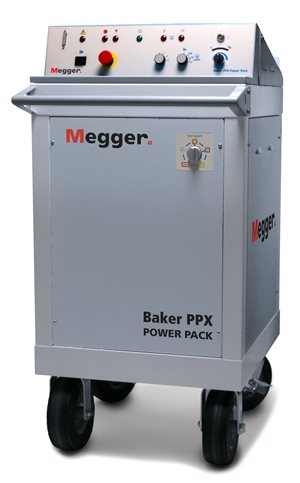

Baker PPX Power Packs

HIGH VOLTAGE MOTOR TESTER

  • Used to extend insulation testing range of AWA-IV static motor analyzers and selected DX analyzers
  • Test voltages from 5 kV to 40 kV
  • Mobile, large-wheeled cabinet for easy transport to the test area
  • Baker PPX30A includes an internal armature test circuit built in for testing large DC motors. When in armature mode, test voltage is limited to 2100 V and the current available is increased up to 7000 A.
  • Complete range of tests (surge, winding resistance, Megohm (PI, DA), continuous ramp DC step-voltage, and DC hipot tests).

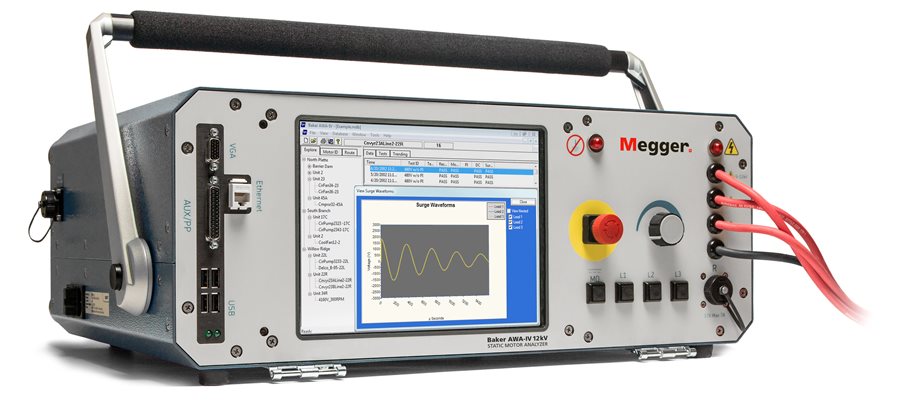

Baker AWA-IV

STATIC MOTOR ANALYZER

  • Range includes 2 kV, 4 kV, 6 kV and 12 kV models
  • Testing capabilities include: surge, winding resistance, Megohm, PI, DA, continuous ramp DC step-voltage, and DC hipot tests
  • 12 kV HO (high-output) version for performing surge tests on large motors and generators
  • Compatible with Baker PPX Power Packs to extend insulation testing voltage range (6 kV, 12 kV and 12 kV HO versions only)
  • IEEE- and IEC-compliant surge test
  • Surge waveform comparison by the patented Pulse to Pulse Error Area Ratio (PP-EAR) technique
EXP4000   DX

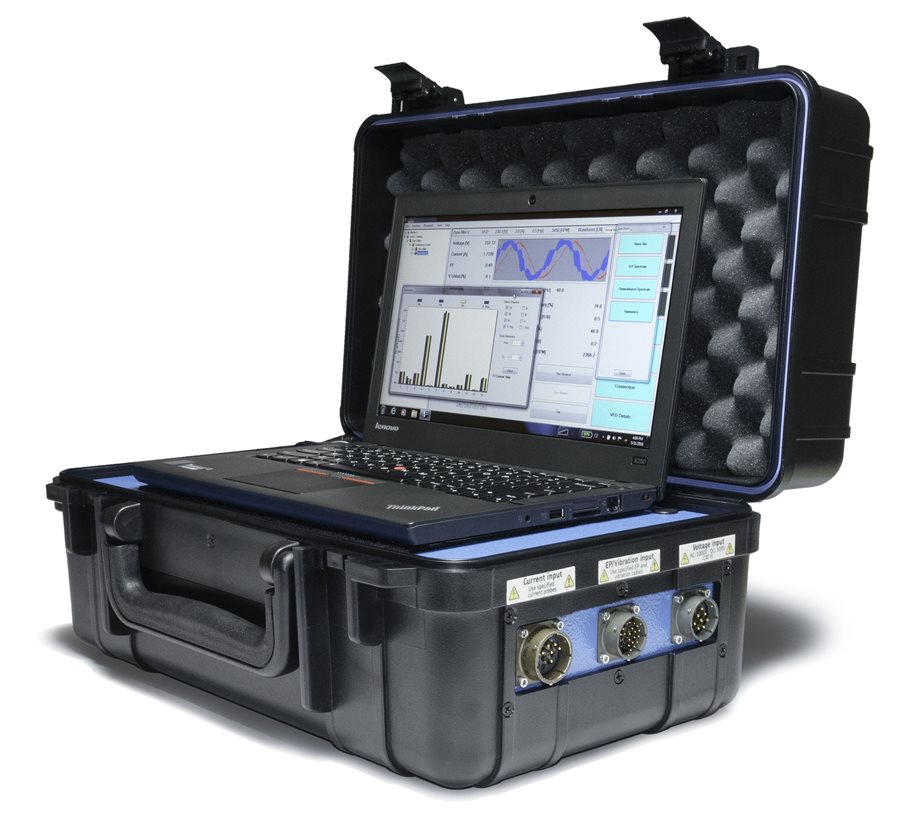

Baker EXP4000

DYNAMIC MOTOR ANALYZER

  • Monitors and assesses conditions across a running “machine system” that impact the health and performance of the motor within the system
  • Evaluates the quality of incoming power fed to motor
  • Tracks the amount and condition of load placed on the motor
  • Instrument connection options: at a motor junction box, at the instrumentation cabinet, inside a motor control cabinet (MCC), from outside an MCC (requires a Baker EP1000 (dynamic motor link))
  • Designed for rugged site use in tight spaces typical of industrial environments

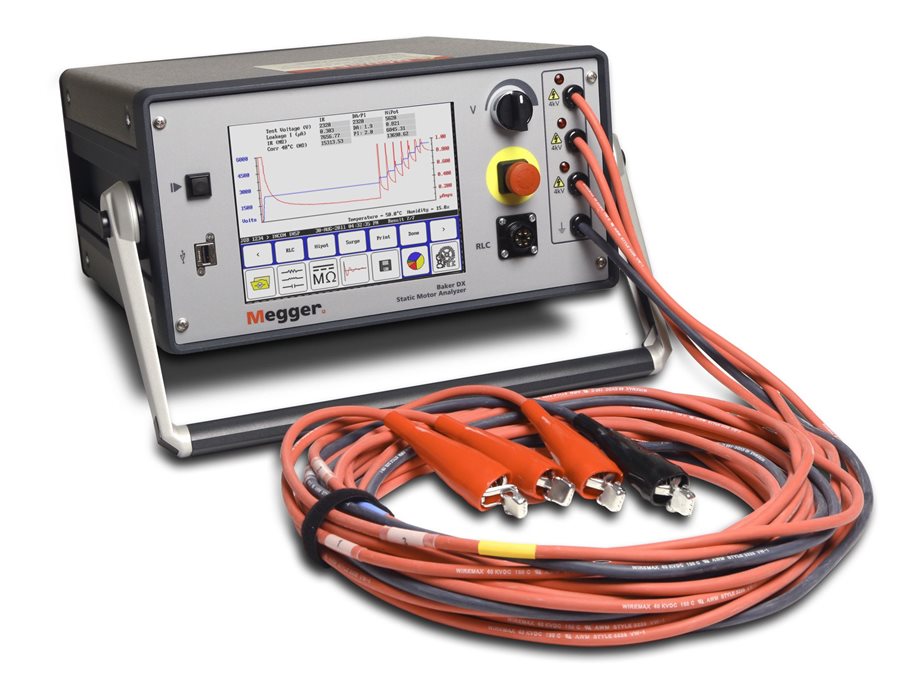

Baker DX

STATIC MOTOR ANALYZER

  • Comprehensive range of tests in one instrument
  • Configurable to meet needs and price point
  • 4 kV to 12 kV for wide spectrum of motors and coils
  • Compatible with the Baker PPX Power Packs for testing up to 40 kV
  • High and low voltage tests to characterize circuits and insulation
  • Coil mode for rapid testing and data storage



Complete the form below to request a quote or more information, or contact us at 1.800.297.9688



The promo runs now through August 31, 2020. Promo valid in Canada only.

A NEW Megger Baker motor test set (PPX Power Pack, DX Static Motor Analyzer, AWA Static Motor Analyzer, EXP4000 Dynamic Motor Analyzer) must be purchased for a 10% off standard list price to be applied, credit cannot be deferred or applied toward a future purchase. Discount excludes accessories.

Offer is valid per unit purchased. This promotion cannot be combined with any other current Megger promotions unless approved by Megger. Megger reserves the right to modify or terminate this promotion at its sole discretion. Transactions must be completed by August 31, 2020.
